- Power: 110V 60HZ; Motor Power: 1.8KW; Charge pressure: 30MPA; Working Pressure: 300BAR 30MPA 4500PSI. Air pump inflating speed: 2800r/min; Work flow: 50L/min;Practical test: 0.5 liter cylinder filled for 4 minutes to 300BAR/30MPA/4500PSI;Oil standard: IS0 VG 46 & AW 46.
- WIDE APPLICATION: Perfect for fire fighting, paintball, leakage detecting, pressure-tight test, automobiles, air impermeability test, pressure proof test, etc.

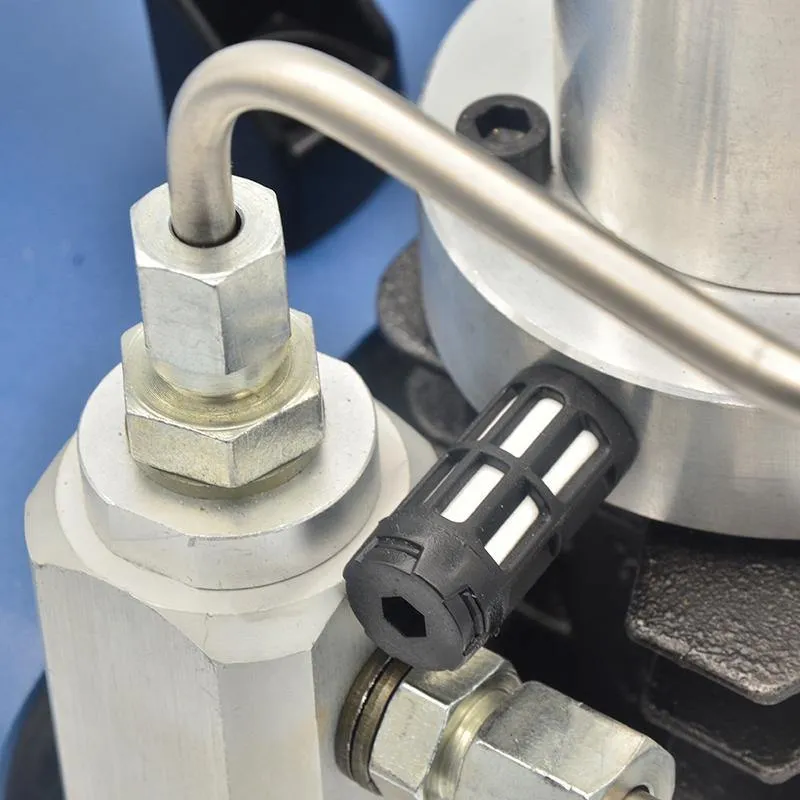

- PREMIUM QUALITY: Designed with two-stage compression and two water-oil separators for performance stability. It takes only 54 minutes to fill full 6.8L tank to 300BAR.
- COOLING SYSTEM: Please prepare enough cooling water, it is recommended to be a vat of water to achieve better cooling effects. The water in container should be no less than 20L/5 gallon.WORKING WITHOUT WATER IS FORBIDDEN!
- ATTENTION: This compressor is manual shut-off only - you'll need to switch the compressor off yourself once the target pressure is reached.
- đź”´Notice: đź”´The temperature sensor is only compatible with AG13, 357A, CX157 and LR44W 1.5V batteries;Be sure to tighten the pressure relief screw before use!
HOM
|
Model |
YH-QB01 |
|

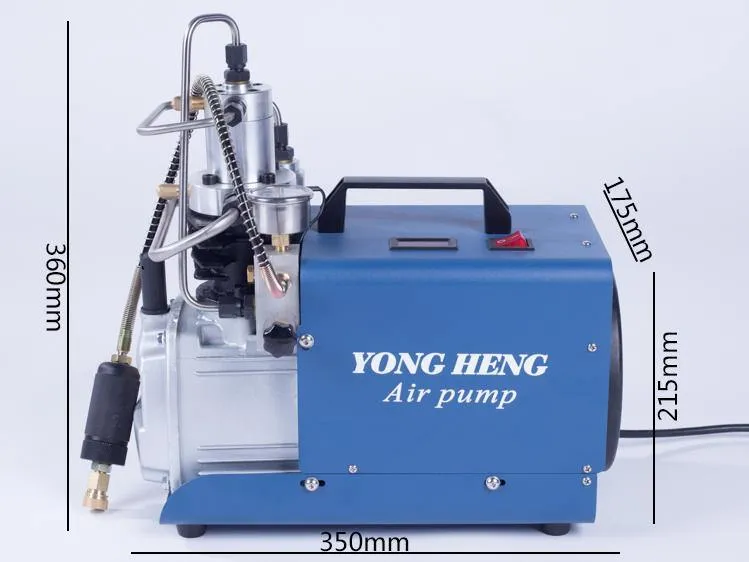

Volume |
L36CM*Â W18CMÂ *H37CM |
|
Net Weight |
16KG |
|
Voltage |
100-130V/60HZ |
|
Power Rating |
1.8KW |
|
InflatingSpeed |
2800R/Min |
|
Noise |
MAXÂ 78DB |
|
Air Flow Rate |
50L/Min |
|
Working Pressure |
0-300BARÂ 0-30MPAÂ 0-4500PSI |
|
Cooling System |
Water Cooling |
|
Compression Stage |
Two Stage |
|
Lubrication Mode |
Splash Type |
|
Material of Cover |
Cast Aluminum |
|

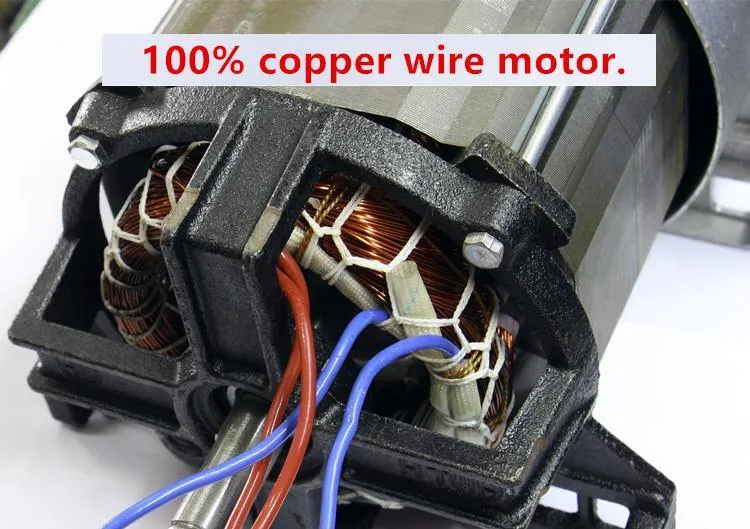

Material of Motor |
100% Pure Copper |
|
Oil: |
ISO VG46 Anti-Wear Hydraulic Oil(the machine is without of oil because the oil is not allowed on the plane) |
|
Test Inflating Result |
It takes 3 mins 50 seconds to fill full 0.45L tank to 30MPA |
|
Test Inflating Result |
It takes 8mins to fill full 1L tank to 300BAR |
